NSK UCL206-40D1
Take-up Stretcher UnitsTM
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCL206-40D1
Included products
Bearing

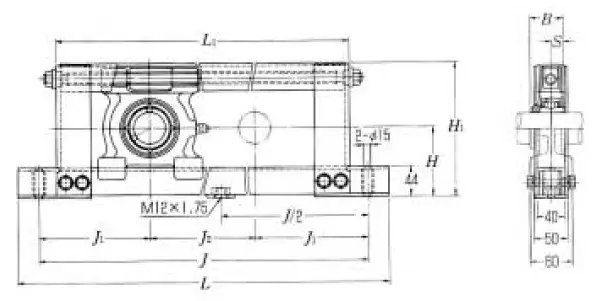

Nominal Dimensions
d
30
mm
Bore diameter
L
750
mm
Overall length
H
87
mm
Overall height
J
690
mm
Distance between attachment bolts
J1
145
mm
Distance between attachment bolts
J,J2
400
mm
Travel
B
38.1
mm
Width of inner ring
S
15.9
mm
Distance from Opposite side face of locking device to raceway centre
J2
400
mm
Travel
L1
640
mm
Foot width
Mounting information
G
M12
Bolt size
Permissible housing load
CR
3.24
kN
Radial
Basic Load Ratings
Cr
19.5
kN
Basic dynamic load rating
C0r
11.3
kN
Basic static load rating
