NSK UCL207-30D1
Take-up Stretcher UnitsTM
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCL207-30D1
Included products
Bearing

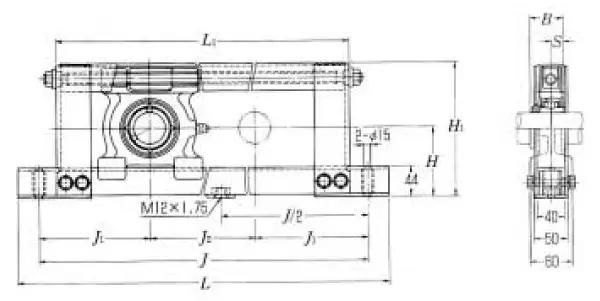

Nominal Dimensions
d
35
mm
Bore diameter
L
660
mm
Overall length
H
92
mm
Overall height
J
600
mm
Distance between attachment bolts
J1
150
mm
Distance between attachment bolts
J,J2
300
mm
Travel
B
42.9
mm
Width of inner ring
S
17.5
mm
Distance from Opposite side face of locking device to raceway centre
J2
300
mm
Travel
L1
550
mm
Foot width
Mounting information
G
M12
Bolt size
Permissible housing load
CR
4.22
kN
Radial
Basic Load Ratings
Cr
25.7
kN
Basic dynamic load rating
C0r
15.3
kN
Basic static load rating
