NSK UCL208-20D1
Take-up Stretcher UnitsTM
(BRAND)：NSK
(Availability)：In Stock
Designations
UCL208-20D1
Included products
Bearing

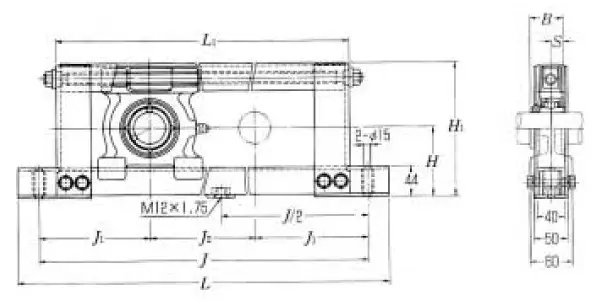

Nominal Dimensions
d
40
mm
Bore diameter
L
570
mm
Overall length
H
97
mm
Overall height
J
510
mm
Distance between attachment bolts
J1
155
mm
Distance between attachment bolts
J,J2
200
mm
Travel
B
49.2
mm
Width of inner ring
S
19
mm
Distance from Opposite side face of locking device to raceway centre
J2
200
mm
Travel
L1
460
mm
Foot width
Mounting information
G
M12
Bolt size
Permissible housing load
CR
4.51
kN
Radial
Basic Load Ratings
Cr
29.1
kN
Basic dynamic load rating
C0r
17.8
kN
Basic static load rating
