NSK UCL209-20D1
Take-up Stretcher UnitsTM
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCL209-20D1
Included products
Bearing

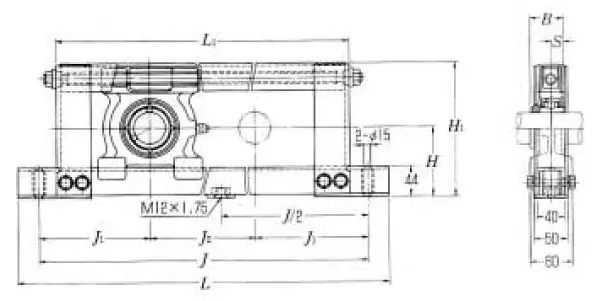

Nominal Dimensions
d
45
mm
Bore diameter
L
580
mm
Overall length
H
100
mm
Overall height
J
520
mm
Distance between attachment bolts
J1
160
mm
Distance between attachment bolts
J,J2
200
mm
Travel
B
49.2
mm
Width of inner ring
S
19
mm
Distance from Opposite side face of locking device to raceway centre
J2
200
mm
Travel
L1
470
mm
Foot width
Mounting information
G
M12
Bolt size
Permissible housing load
CR
4.51
kN
Radial
Basic Load Ratings
Cr
32.5
kN
Basic dynamic load rating
C0r
20.4
kN
Basic static load rating
