NSK UCM317-80D1
Take-up Stretcher UnitsTM
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCM317-80D1
Included products
Bearing

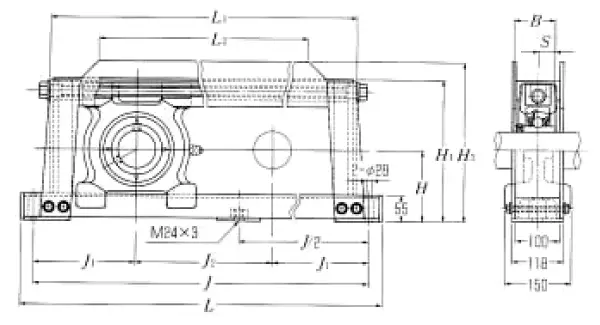

Nominal Dimensions
d
85
mm
Bore diameter
L
1320
mm
Overall length
H
165
mm
Overall height
J
1260
mm
Distance between attachment bolts
J1
230
mm
Distance between attachment bolts
J,J2
800
mm
Travel
H1
325
mm
Overall Height
B
96
mm
Width of inner ring
S
40
mm
Distance from Opposite side face of locking device to raceway centre
J2
800
mm
Travel
L1
1210
mm
Foot width
Mounting information
G
M18
Bolt size
Permissible housing load
CR
19.6
kN
Radial
Basic Load Ratings
Cr
133
kN
Basic dynamic load rating
C0r
97
kN
Basic static load rating
