NSK UCM319-80D1
Take-up Stretcher UnitsTM
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCM319-80D1
Included products
Bearing

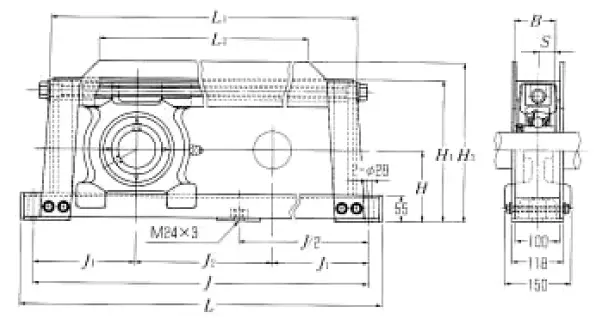

Nominal Dimensions
d
95
mm
Bore diameter
L
1480
mm
Overall length
H
185
mm
Overall height
J
1400
mm
Distance between attachment bolts
J1
300
mm
Distance between attachment bolts
J,J2
800
mm
Travel
H1
377
mm
Overall Height
B
103
mm
Width of inner ring
S
41
mm
Distance from Opposite side face of locking device to raceway centre
J2
800
mm
Travel
L1
1321
mm
Foot width
H2
400
mm
Overall height
Mounting information
G
M24
Bolt size
Permissible housing load
CR
19.6
kN
Radial
Basic Load Ratings
Cr
153
kN
Basic dynamic load rating
C0r
119
kN
Basic static load rating
