NSK UCT205-15D1
Take-up Stretcher UnitsTM
(BRAND)：NSK
(Availability)：In Stock
Designations
UCT205-15D1
Included products
Bearing

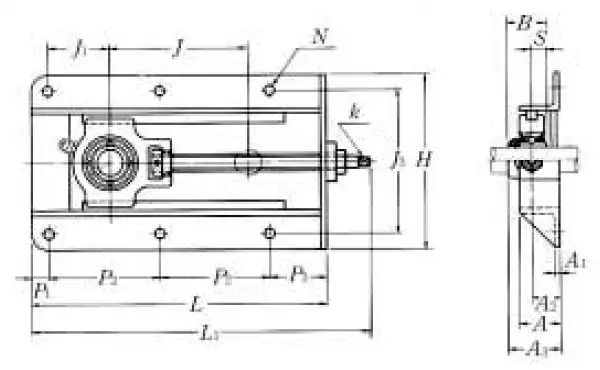

Nominal Dimensions
d
25
mm
Bore diameter
L
317
mm
Overall length
H
199
mm
Overall height
J3
154
mm
Distance between attachment bolts
N
12
mm
Diameter of attachment bolt hole
A2
30
mm
Flange width
A1
6
mm
Flange width
A
50
mm
Base width
J
150
mm
Travel
J,J2
150
mm
Travel
A3
49.8
mm
Overall Height
k
9
mm
Square
B
34.1
mm
Width of inner ring
S
14.3
mm
Distance from Opposite side face of locking device to raceway centre
L1
370
mm
Foot width
P3
64
mm
Distance from frame side face to attachment bolt centre
P2
117
mm
Distance between attachment bolts
P1
19
mm
Distance from frame side face to attachment bolt centre
Mounting information
TM
TM16X3
Adjustment screw size
G
M10
Bolt size
Basic Load Ratings
Cr
14
kN
Basic dynamic load rating
C0r
7.85
kN
Basic static load rating
Mass
mass
5
kg
Mass approx.
