NSK UCT206-15D1
Take-up Stretcher UnitsTM
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCT206-15D1
Included products
Bearing

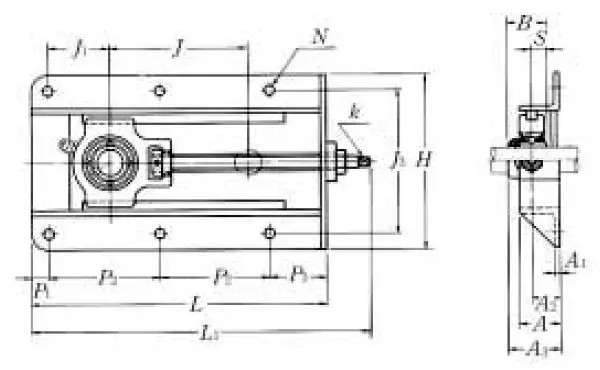

Nominal Dimensions
d
30
mm
Bore diameter
L
337
mm
Overall length
H
212
mm
Overall height
J3
166
mm
Distance between attachment bolts
N
12
mm
Diameter of attachment bolt hole
A2
32
mm
Flange width
A1
6
mm
Flange width
A
50
mm
Base width
J
150
mm
Travel
J,J2
150
mm
Travel
A3
54.2
mm
Overall Height
k
10
mm
Square
B
38.1
mm
Width of inner ring
S
15.9
mm
Distance from Opposite side face of locking device to raceway centre
L1
393
mm
Foot width
P3
64
mm
Distance from frame side face to attachment bolt centre
P2
127
mm
Distance between attachment bolts
P1
19
mm
Distance from frame side face to attachment bolt centre
Mounting information
TM
TM18X4
Adjustment screw size
G
M10
Bolt size
Basic Load Ratings
Cr
19.5
kN
Basic dynamic load rating
C0r
11.3
kN
Basic static load rating
Mass
mass
5.7
kg
Mass approx.
