NSK UCT209-30D1
Take-up Stretcher UnitsTM
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCT209-30D1
Included products
Bearing

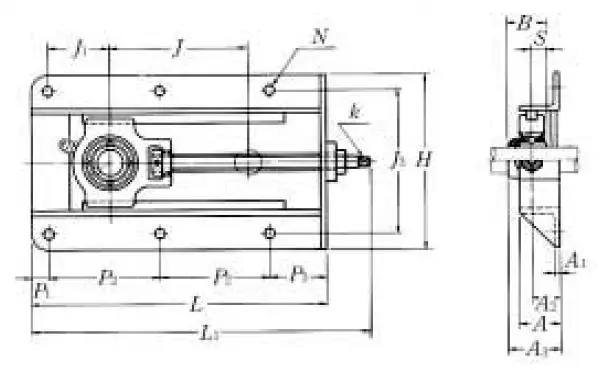

Nominal Dimensions
d
45
mm
Bore diameter
L
520
mm
Overall length
H
233
mm
Overall height
J3
192
mm
Distance between attachment bolts
N
12
mm
Diameter of attachment bolt hole
A2
32
mm
Flange width
A1
6
mm
Flange width
A
50
mm
Base width
J
300
mm
Travel
J,J2
300
mm
Travel
A3
62.2
mm
Overall Height
k
15
mm
Square
B
49.2
mm
Width of inner ring
S
19
mm
Distance from Opposite side face of locking device to raceway centre
L1
596
mm
Foot width
P3
64
mm
Distance from frame side face to attachment bolt centre
P2
217
mm
Distance between attachment bolts
P1
22
mm
Distance from frame side face to attachment bolt centre
Mounting information
TM
TM25X5
Adjustment screw size
G
M10
Bolt size
Basic Load Ratings
Cr
32.5
kN
Basic dynamic load rating
C0r
20.4
kN
Basic static load rating
Mass
mass
11
kg
Mass approx.
