NSK UCT211-30D1
Take-up Stretcher UnitsTM
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCT211-30D1
Included products
Bearing

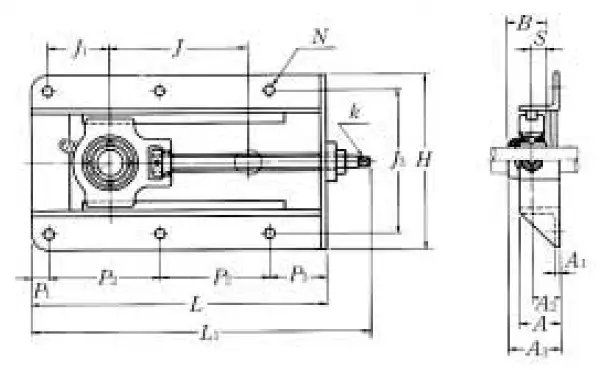

Nominal Dimensions
d
55
mm
Bore diameter
L
542
mm
Overall length
H
285
mm
Overall height
J3
240
mm
Distance between attachment bolts
N
15
mm
Diameter of attachment bolt hole
A2
38
mm
Flange width
A1
8
mm
Flange width
A
65
mm
Base width
J
300
mm
Travel
J,J2
300
mm
Travel
A3
71.4
mm
Overall Height
k
17
mm
Square
B
55.6
mm
Width of inner ring
S
22.2
mm
Distance from Opposite side face of locking device to raceway centre
L1
630
mm
Foot width
P3
60
mm
Distance from frame side face to attachment bolt centre
P2
230
mm
Distance between attachment bolts
P1
22
mm
Distance from frame side face to attachment bolt centre
Mounting information
TM
TM30X6
Adjustment screw size
G
M12
Bolt size
Basic Load Ratings
Cr
43.5
kN
Basic dynamic load rating
C0r
29.2
kN
Basic static load rating
Mass
mass
18
kg
Mass approx.
