NSK UCT306D1
Take-up Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCT306D1
Included products
Bearing
Housing
T306D1
Housing

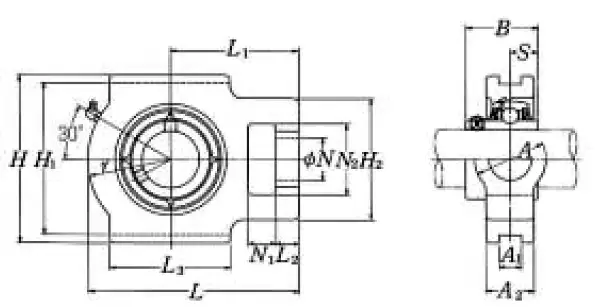

Nominal Dimensions
d
30
mm
Bore diameter
L,L4
137
mm
Overall length
L
137
mm
Overall length
H2
70
mm
Height of attachment end
H
100
mm
Overall height
N2
41
mm
Height of attachment slot
N1
18
mm
Length of attachment slot
N
28
mm
Diameter of attachment bolt hole
L3
74
mm
Length of piloting groove
L2
16
mm
Length attachment end
L1
85
mm
Distance from attachment end face to centre line of spherical seat diameter
A2
28
mm
Flange width
A1
16
mm
Flange width
r
52
mm
Housing radius
A
41
mm
Overall width
H1
90
mm
Distance between bottoms of piloting grooves
B
43
mm
Width of inner ring
S
17
mm
Distance from Opposite side face of locking device to raceway centre
Basic Load Ratings
Cr
26.7
kN
Basic dynamic load rating
C0r
15
kN
Basic static load rating
Mass
mass
1.8
kg
Mass approx.
