NSK UCT315D1
Take-up Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UCT315D1
Included products
Bearing
Housing
T315D1
Housing

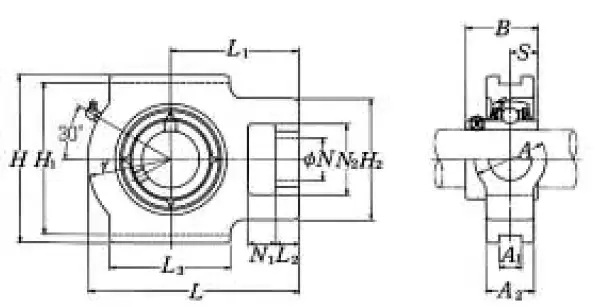

Nominal Dimensions
d
75
mm
Bore diameter
L,L4
262
mm
Overall length
L
262
mm
Overall length
H2
132
mm
Height of attachment end
H
216
mm
Overall height
N2
85
mm
Height of attachment slot
N1
36
mm
Length of attachment slot
N
46
mm
Diameter of attachment bolt hole
L3
150
mm
Length of piloting groove
L2
27
mm
Length attachment end
L1
160
mm
Distance from attachment end face to centre line of spherical seat diameter
A2
55
mm
Flange width
A1
26
mm
Flange width
r
102
mm
Housing radius
A
90
mm
Overall width
H1
192
mm
Distance between bottoms of piloting grooves
B
82
mm
Width of inner ring
S
32
mm
Distance from Opposite side face of locking device to raceway centre
Basic Load Ratings
Cr
113
kN
Basic dynamic load rating
C0r
77
kN
Basic static load rating
Mass
mass
13
kg
Mass approx.
