NSK UCT316D1
Take-up Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCT316D1
Included products
Bearing
Housing
T316D1
Housing

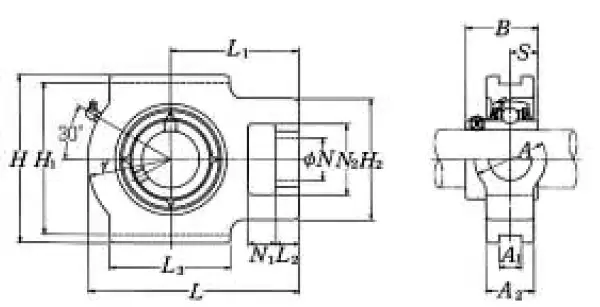

Nominal Dimensions
d
80
mm
Bore diameter
L,L4
282
mm
Overall length
L
282
mm
Overall length
H2
150
mm
Height of attachment end
H
230
mm
Overall height
N2
98
mm
Height of attachment slot
N1
42
mm
Length of attachment slot
N
53
mm
Diameter of attachment bolt hole
L3
160
mm
Length of piloting groove
L2
30
mm
Length attachment end
L1
174
mm
Distance from attachment end face to centre line of spherical seat diameter
A2
60
mm
Flange width
A1
30
mm
Flange width
r
108
mm
Housing radius
A
102
mm
Overall width
H1
204
mm
Distance between bottoms of piloting grooves
B
86
mm
Width of inner ring
S
34
mm
Distance from Opposite side face of locking device to raceway centre
Basic Load Ratings
Cr
123
kN
Basic dynamic load rating
C0r
86.5
kN
Basic static load rating
Mass
mass
16
kg
Mass approx.
