NSK UCTX15D1
Take-up Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UCTX15D1
Included products
Bearing
Housing
TX15D1
Housing

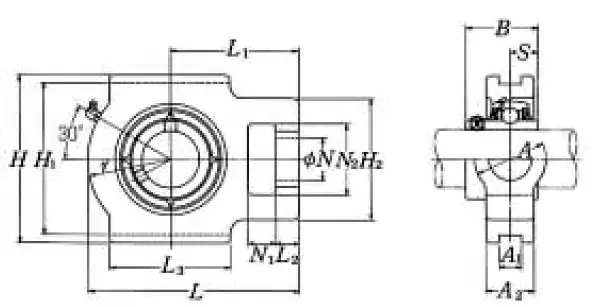

Nominal Dimensions
d
75
mm
Bore diameter
L,L4
235
mm
Overall length
L
235
mm
Overall length
H2
111
mm
Height of attachment end
H
184
mm
Overall height
N2
70
mm
Height of attachment slot
N1
32
mm
Length of attachment slot
N
41
mm
Diameter of attachment bolt hole
L3
121
mm
Length of piloting groove
L2
23
mm
Length attachment end
L1
140
mm
Distance from attachment end face to centre line of spherical seat diameter
A2
48
mm
Flange width
A1
28
mm
Flange width
r
95
mm
Housing radius
A
70
mm
Overall width
H1
165
mm
Distance between bottoms of piloting grooves
B
82.6
mm
Width of inner ring
S
33.3
mm
Distance from Opposite side face of locking device to raceway centre
Basic Load Ratings
Cr
72.5
kN
Basic dynamic load rating
C0r
53
kN
Basic static load rating
Mass
mass
8.3
kg
Mass approx.
