NSK UELC204D1
Cartridge Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UELC204D1
Included products
Bearing
Housing
C204D1
Housing

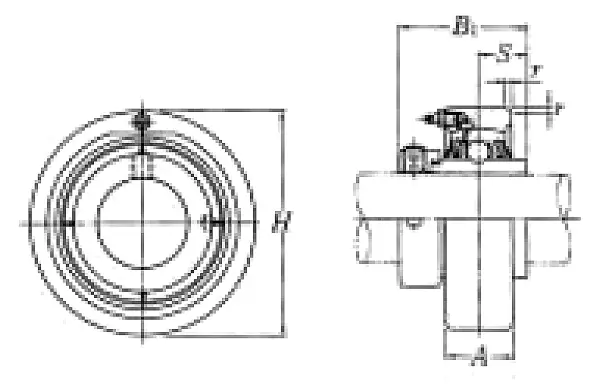

Nominal Dimensions
d
20
mm
Bore diameter
A
20
mm
Base width
r
2
mm
Housing Chamfer dimension
H
72
mm
Outer diameter
B,B1
43.7
mm
Width of inner ring
B1
43.7
mm
Width of inner ring
S
17.1
mm
Distance from Opposite side face of locking device to raceway centre
Basic Load Ratings
Cr
12.8
kN
Basic dynamic load rating
C0r
6.65
kN
Basic static load rating
Mass
mass
0.6
kg
Mass approx.
