NSK UELC207D1
Cartridge Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UELC207D1
Included products
Bearing
Housing
C207D1
Housing

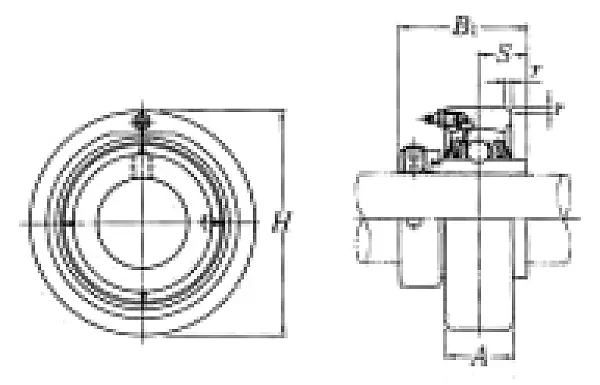

Nominal Dimensions
d
35
mm
Bore diameter
A
28
mm
Base width
r
2
mm
Housing Chamfer dimension
H
90
mm
Outer diameter
B,B1
51.1
mm
Width of inner ring
B1
51.1
mm
Width of inner ring
S
18.8
mm
Distance from Opposite side face of locking device to raceway centre
Basic Load Ratings
Cr
25.7
kN
Basic dynamic load rating
C0r
15.3
kN
Basic static load rating
Mass
mass
1
kg
Mass approx.
