NSK UELC209D1
Cartridge Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UELC209D1
Included products
Bearing
Housing
C219D1
Housing

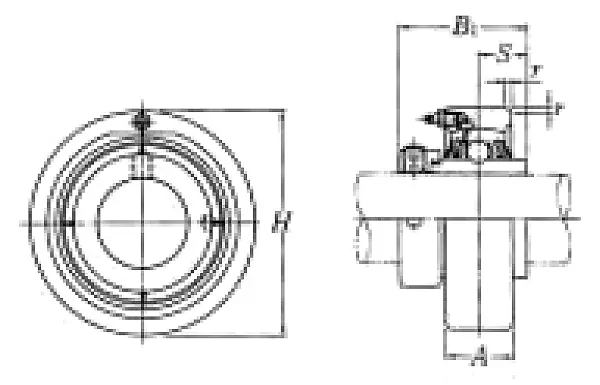

Nominal Dimensions
d
45
mm
Bore diameter
A
31
mm
Base width
r
2.5
mm
Housing Chamfer dimension
H
110
mm
Outer diameter
B,B1
56.3
mm
Width of inner ring
B1
56.3
mm
Width of inner ring
S
21.4
mm
Distance from Opposite side face of locking device to raceway centre
Basic Load Ratings
Cr
32.5
kN
Basic dynamic load rating
C0r
20.4
kN
Basic static load rating
Mass
mass
1.6
kg
Mass approx.
