NSK UELC212D1
Cartridge Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UELC212D1
Included products
Bearing
Housing
C212D1
Housing

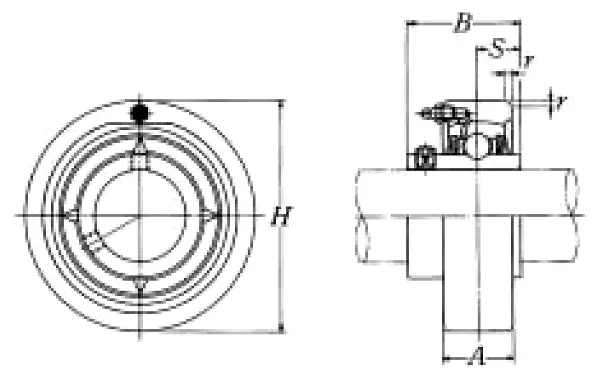

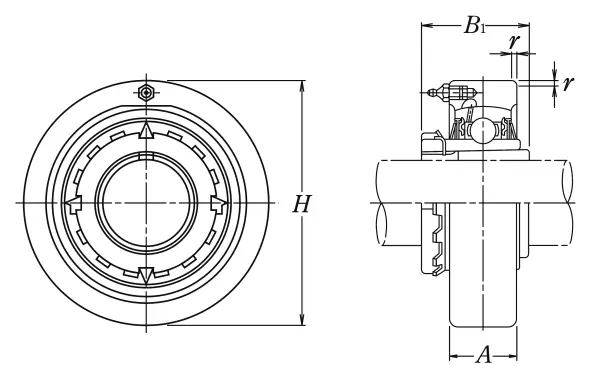

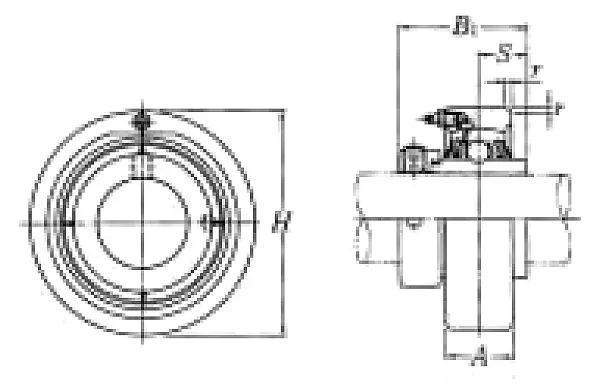

Nominal Dimensions
d
60
mm
Bore diameter
A
38
mm
Base width
r
2.5
mm
Housing Chamfer dimension
H
130
mm
Outer diameter
B,B1
77.8
mm
Width of inner ring
B1
77.8
mm
Width of inner ring
S
30.95
mm
Distance from Opposite side face of locking device to raceway centre
Basic Load Ratings
Cr
52.5
kN
Basic dynamic load rating
C0r
36
kN
Basic static load rating
Mass
mass
2.8
kg
Mass approx.
