NSK UKC207D1
Cartridge Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UKC207D1
Included products
Bearing
Housing
C207D1
Housing
Associated products
Adapter sleeve

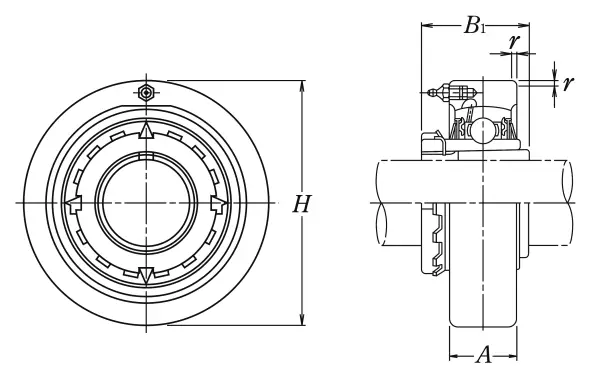

Nominal Dimensions
d
30
mm
Bore diameter
A
28
mm
Base width
r
2
mm
Housing Chamfer dimension
H
90
mm
Outer diameter
B,B1
43
mm
Width of inner ring
B1
43
mm
Width of inner ring
Basic Load Ratings
Cr
25.7
kN
Basic dynamic load rating
C0r
15.3
kN
Basic static load rating
Mass
mass
1
kg
Mass approx.
