NSK UKC211D1
Cartridge Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UKC211D1
Included products
Bearing
Housing
C211D1
Housing
Associated products
Adapter sleeve

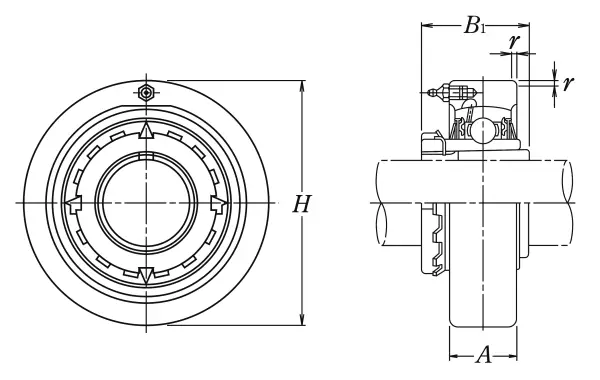

Nominal Dimensions
d
50
mm
Bore diameter
A
35
mm
Base width
r
2.5
mm
Housing Chamfer dimension
H
125
mm
Outer diameter
B,B1
59
mm
Width of inner ring
B1
59
mm
Width of inner ring
Basic Load Ratings
Cr
43.5
kN
Basic dynamic load rating
C0r
29.2
kN
Basic static load rating
Mass
mass
2.3
kg
Mass approx.
