NSK UKC309D1
Cartridge Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UKC309D1
Included products
Bearing
Housing
C309D1
Housing
Associated products
Adapter sleeve

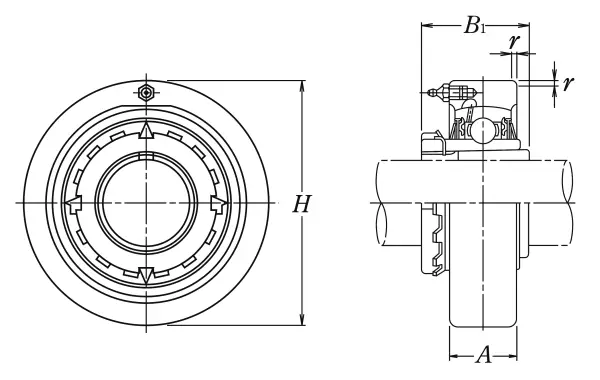

Nominal Dimensions
d
40
mm
Bore diameter
A
38
mm
Base width
r
3.5
mm
Housing Chamfer dimension
H
130
mm
Outer diameter
B,B1
50
mm
Width of inner ring
B1
50
mm
Width of inner ring
Basic Load Ratings
Cr
53
kN
Basic dynamic load rating
C0r
32
kN
Basic static load rating
Mass
mass
2.7
kg
Mass approx.
