NSK UKCX05D1
Cartridge Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UKCX05D1
Included products
Bearing
Housing
CX05D1
Housing
Associated products
Adapter sleeve

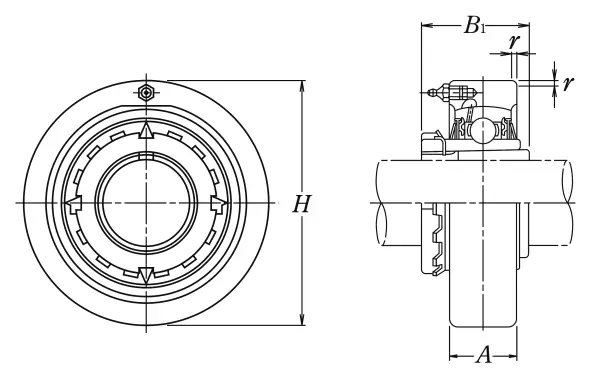

Nominal Dimensions
d
20
mm
Bore diameter
A
27
mm
Base width
r
2
mm
Housing Chamfer dimension
H
90
mm
Outer diameter
B,B1
35
mm
Width of inner ring
B1
35
mm
Width of inner ring
Basic Load Ratings
Cr
19.5
kN
Basic dynamic load rating
C0r
11.3
kN
Basic static load rating
Mass
mass
1.1
kg
Mass approx.
