NSK UKFC206D1
Round Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UKFC206D1
Included products
Bearing
Housing
FC206D1
Housing
Associated products
Adapter sleeve

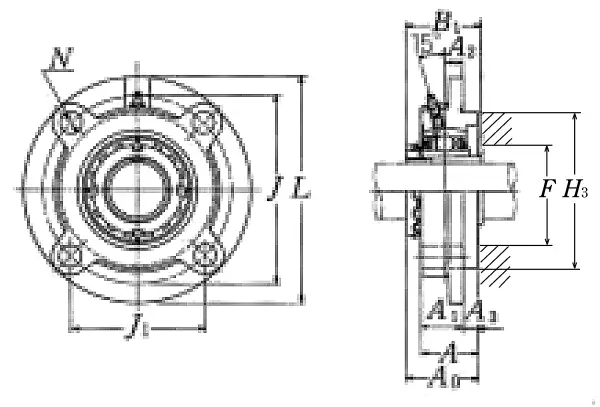

Nominal Dimensions
d
25
mm
Bore diameter
L,H
125
mm
Overall length
H3
80
mm
Outer diameter of Spigot Joint
J
100
mm
Pitch diameter of attachment bolts
J1
70.7
mm
Distance between attachment bolts
N
12
mm
Diameter of attachment bolt hole
A3
8
mm
Height of of Spigot Joint
A2
10
mm
Flange width
A1
23
mm
Flange width
A
31
mm
Base width
A0
39
mm
Overall width
B,B1,B2
38
mm
Width of inner ring
F
36
mm
Diameter of housing abutment
Mounting information
G
M10
Bolt size
Basic Load Ratings
Cr
19.5
kN
Basic dynamic load rating
C0r
11.3
kN
Basic static load rating
