NSK UKFCX06D1
Round Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UKFCX06D1
Included products
Bearing
Housing
FCX06D1
Housing
Associated products
Adapter sleeve

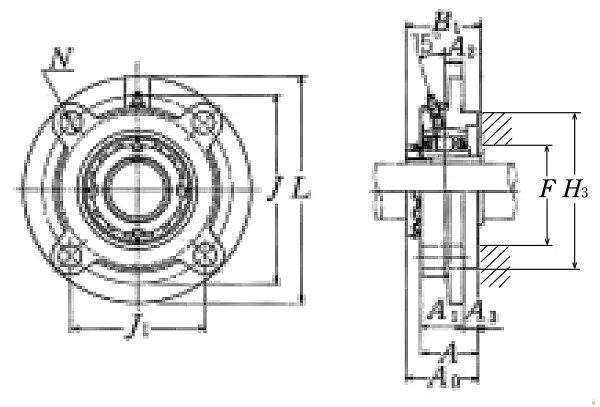

Nominal Dimensions
d
25
mm
Bore diameter
L,H
127
mm
Overall length
H3
85
mm
Outer diameter of Spigot Joint
J
105
mm
Pitch diameter of attachment bolts
J1
74.2
mm
Distance between attachment bolts
N
12
mm
Diameter of attachment bolt hole
A3
9.5
mm
Height of of Spigot Joint
A2
8
mm
Flange width
A1
22.5
mm
Flange width
A
32
mm
Base width
A0
40
mm
Overall width
B,B1,B2
38
mm
Width of inner ring
F
36
mm
Diameter of housing abutment
Mounting information
G
M10
Bolt size
Basic Load Ratings
Cr
25.7
kN
Basic dynamic load rating
C0r
15.3
kN
Basic static load rating
