NSK UKFCX08D1
Round Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UKFCX08D1
Included products
Bearing
Housing
FCX08D1
Housing
Associated products
Adapter sleeve

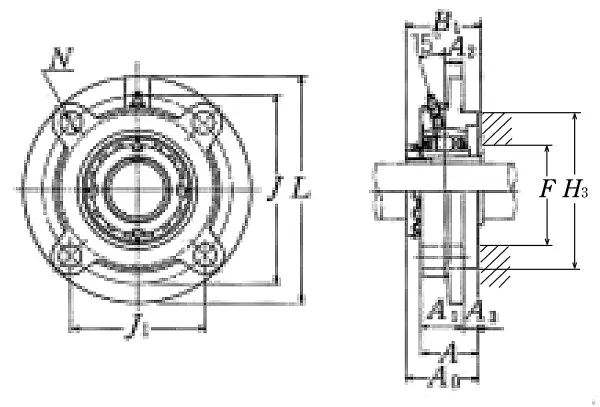

Nominal Dimensions
d
35
mm
Bore diameter
L,H
133
mm
Overall length
H3
92
mm
Outer diameter of Spigot Joint
J
111
mm
Pitch diameter of attachment bolts
J1
78.5
mm
Distance between attachment bolts
N
12
mm
Diameter of attachment bolt hole
A3
11
mm
Height of of Spigot Joint
A2
9
mm
Flange width
A1
26
mm
Flange width
A
37
mm
Base width
A0
45.5
mm
Overall width
B,B1,B2
46
mm
Width of inner ring
F
46
mm
Diameter of housing abutment
Mounting information
G
M10
Bolt size
Basic Load Ratings
Cr
32.5
kN
Basic dynamic load rating
C0r
20.4
kN
Basic static load rating
