NSK UKFCX09D1
Round Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UKFCX09D1
Included products
Bearing
Housing
FCX09D1
Housing
Associated products
Adapter sleeve

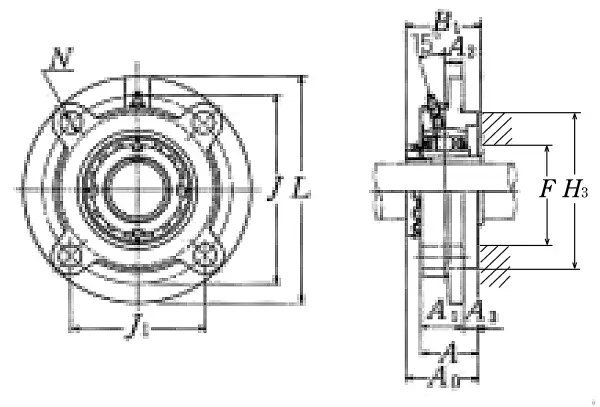

Nominal Dimensions
d
40
mm
Bore diameter
L,H
155
mm
Overall length
H3
108
mm
Outer diameter of Spigot Joint
J
130
mm
Pitch diameter of attachment bolts
J1
91.9
mm
Distance between attachment bolts
N
14
mm
Diameter of attachment bolt hole
A3
12
mm
Height of of Spigot Joint
A2
8
mm
Flange width
A1
25
mm
Flange width
A
37
mm
Base width
A0
47
mm
Overall width
B,B1,B2
50
mm
Width of inner ring
F
52
mm
Diameter of housing abutment
Mounting information
G
M12
Bolt size
Basic Load Ratings
Cr
35
kN
Basic dynamic load rating
C0r
23.2
kN
Basic static load rating
