NSK UKTX13D1
Take-up Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UKTX13D1
Included products
Bearing
Housing
TX13D1
Housing
Associated products
Adapter sleeve

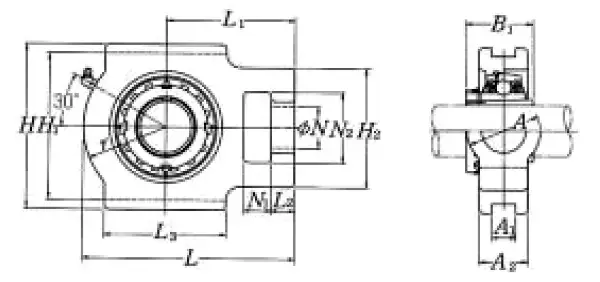

Nominal Dimensions
d
60
mm
Bore diameter
L,L4
224
mm
Overall length
L
224
mm
Overall length
H2
111
mm
Height of attachment end
H
167
mm
Overall height
N2
70
mm
Height of attachment slot
N1
32
mm
Length of attachment slot
N
41
mm
Diameter of attachment bolt hole
L3
121
mm
Length of piloting groove
L2
23
mm
Length attachment end
L1
137
mm
Distance from attachment end face to centre line of spherical seat diameter
A2
48
mm
Flange width
A1
26
mm
Flange width
r
87
mm
Housing radius
A
70
mm
Overall width
H1
151
mm
Distance between bottoms of piloting grooves
B1
65
mm
Width of inner ring
Basic Load Ratings
Cr
62
kN
Basic dynamic load rating
C0r
44
kN
Basic static load rating
Mass
mass
7.2
kg
Mass approx.
