NSK UKTX16D1
Take-up Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UKTX16D1
Included products
Bearing
Housing
TX16D1
Housing
Associated products
Adapter sleeve

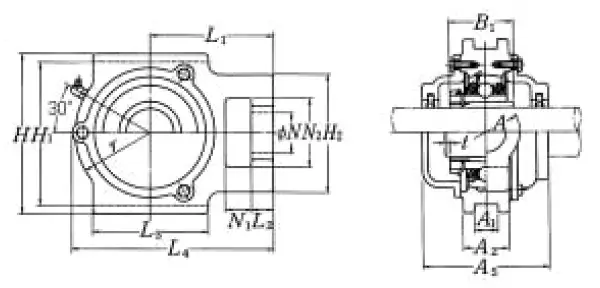

Nominal Dimensions
d
70
mm
Bore diameter
L,L4
260
mm
Overall length
L
260
mm
Overall length
H2
124
mm
Height of attachment end
H
198
mm
Overall height
N2
73
mm
Height of attachment slot
N1
38
mm
Length of attachment slot
N
48
mm
Diameter of attachment bolt hole
L3
157
mm
Length of piloting groove
L2
157
mm
Length attachment end
L1
162
mm
Distance from attachment end face to centre line of spherical seat diameter
A2
54
mm
Flange width
A1
28
mm
Flange width
r
98
mm
Housing radius
A
73
mm
Overall width
H1
173
mm
Distance between bottoms of piloting grooves
B1
78
mm
Width of inner ring
Basic Load Ratings
Cr
83.5
kN
Basic dynamic load rating
C0r
64
kN
Basic static load rating
Mass
mass
11
kg
Mass approx.
