NSK Z-UCFC207D1
Round Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
Z-UCFC207D1
Included products
Bearing
Housing
FC207D1
Housing

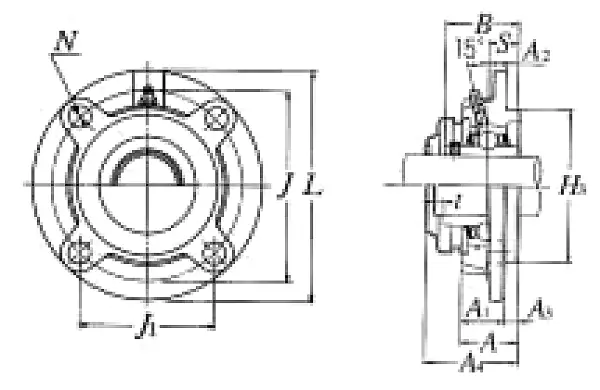

Nominal Dimensions
d
35
mm
Bore diameter
L,H
135
mm
Overall length
H3
90
mm
Outer diameter of Spigot Joint
J
110
mm
Pitch diameter of attachment bolts
J1
77.8
mm
Distance between attachment bolts
N
14
mm
Diameter of attachment bolt hole
A3
8
mm
Height of of Spigot Joint
A2
11
mm
Flange width
A1
26
mm
Flange width
A
34
mm
Base width
A4
49
mm
Width including end cover
B,B1,B2
42.9
mm
Width of inner ring
t
3
mm
Clearance
S
17.5
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M12
Bolt size
Basic Load Ratings
Cr
25.7
kN
Basic dynamic load rating
C0r
15.3
kN
Basic static load rating
Mass
mass
1.7
kg
Mass approx.
