NSK Z-UCT207D1
Take-up Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
Z-UCT207D1
Included products
Bearing
Housing
T207D1
Housing

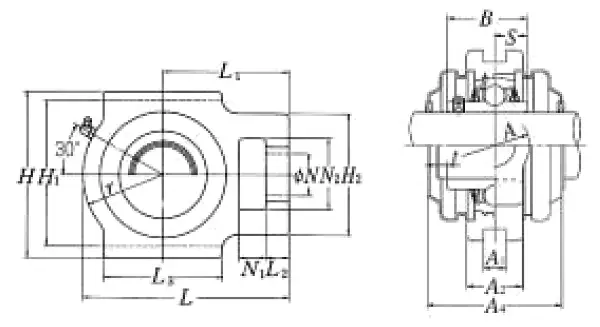

Nominal Dimensions
d
35
mm
Bore diameter
L,L4
129
mm
Overall length
L
129
mm
Overall length
H2
64
mm
Height of attachment end
H
102
mm
Overall height
N2
37
mm
Height of attachment slot
N1
16
mm
Length of attachment slot
N
22
mm
Diameter of attachment bolt hole
L3
64
mm
Length of piloting groove
L2
15
mm
Length attachment end
L1
78
mm
Distance from attachment end face to centre line of spherical seat diameter
A2
30
mm
Flange width
A1
12
mm
Flange width
r
51
mm
Housing radius
A4
60
mm
Width including end cover
t
3
mm
Clearance
A
37
mm
Overall width
H1
89
mm
Distance between bottoms of piloting grooves
B
42.9
mm
Width of inner ring
S
17.5
mm
Distance from Opposite side face of locking device to raceway centre
Basic Load Ratings
Cr
25.7
kN
Basic dynamic load rating
C0r
15.3
kN
Basic static load rating
Mass
mass
1.7
kg
Mass approx.
