NSK Z-UKFC209D1
Round Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
Z-UKFC209D1
Included products
Bearing
Housing
FC209D1
Housing
Associated products
Adapter sleeve

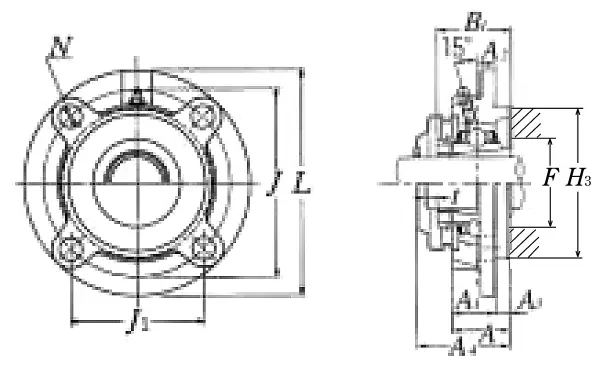

Nominal Dimensions
d
40
mm
Bore diameter
L,H
160
mm
Overall length
H3
105
mm
Outer diameter of Spigot Joint
J
132
mm
Pitch diameter of attachment bolts
J1
93.3
mm
Distance between attachment bolts
N
16
mm
Diameter of attachment bolt hole
A3
12
mm
Height of of Spigot Joint
A2
10
mm
Flange width
A1
26
mm
Flange width
A
38
mm
Base width
A4
57
mm
Width including end cover
B,B1,B2
50
mm
Width of inner ring
F
52
mm
Diameter of housing abutment
t
3
mm
Clearance
Mounting information
G
M14
Bolt size
Basic Load Ratings
Cr
32.5
kN
Basic dynamic load rating
C0r
20.4
kN
Basic static load rating
