NSK Z-UKFC211D1
Round Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
Z-UKFC211D1
Included products
Bearing
Housing
FC211D1
Housing
Associated products
Adapter sleeve

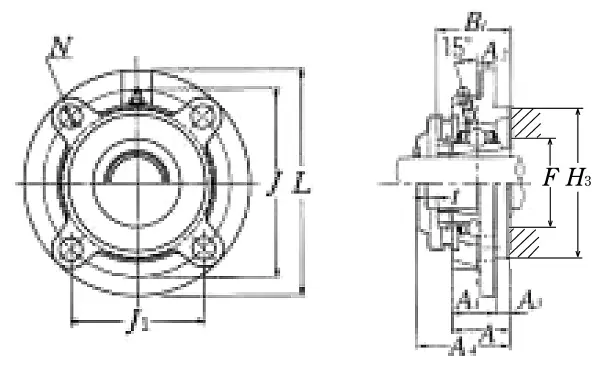

Nominal Dimensions
d
50
mm
Bore diameter
L,H
185
mm
Overall length
H3
125
mm
Outer diameter of Spigot Joint
J
150
mm
Pitch diameter of attachment bolts
J1
106.1
mm
Distance between attachment bolts
N
19
mm
Diameter of attachment bolt hole
A3
12
mm
Height of of Spigot Joint
A2
13
mm
Flange width
A1
31
mm
Flange width
A
43
mm
Base width
A4
64
mm
Width including end cover
B,B1,B2
59
mm
Width of inner ring
F
64
mm
Diameter of housing abutment
t
4
mm
Clearance
Mounting information
G
M16
Bolt size
Basic Load Ratings
Cr
43.5
kN
Basic dynamic load rating
C0r
29.2
kN
Basic static load rating
