NSK ZM-UCFC205D1
Round Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
ZM-UCFC205D1
Included products
Bearing
Housing
FC205D1
Housing

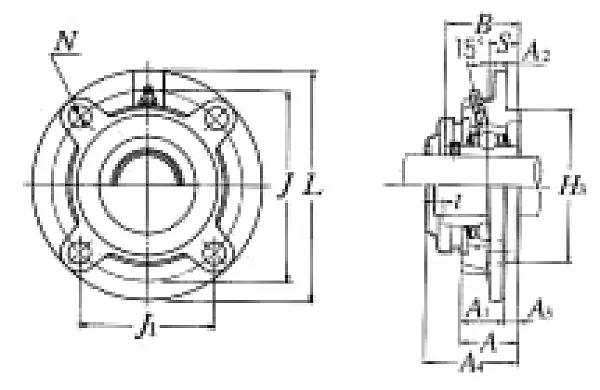

Nominal Dimensions
d
25
mm
Bore diameter
L,H
115
mm
Overall length
H3
70
mm
Outer diameter of Spigot Joint
J
90
mm
Pitch diameter of attachment bolts
J1
63.6
mm
Distance between attachment bolts
N
12
mm
Diameter of attachment bolt hole
A3
6
mm
Height of of Spigot Joint
A2
10
mm
Flange width
A1
21
mm
Flange width
A
27
mm
Base width
A4
40
mm
Width including end cover
B,B1,B2
34.1
mm
Width of inner ring
t
2
mm
Clearance
S
14.3
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M10
Bolt size
Basic Load Ratings
Cr
14
kN
Basic dynamic load rating
C0r
7.85
kN
Basic static load rating
Mass
mass
1
kg
Mass approx.
