NSK ZM-UKFC212D1
Round Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
ZM-UKFC212D1
Included products
Bearing
Housing
FC212D1
Housing
Associated products
Adapter sleeve

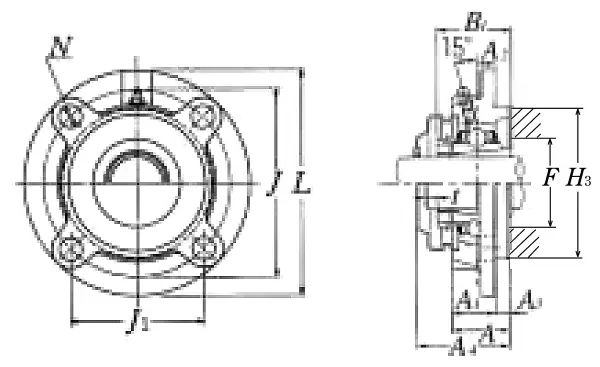

Nominal Dimensions
d
55
mm
Bore diameter
L,H
195
mm
Overall length
H3
135
mm
Outer diameter of Spigot Joint
J
160
mm
Pitch diameter of attachment bolts
J1
113.1
mm
Distance between attachment bolts
N
19
mm
Diameter of attachment bolt hole
A3
12
mm
Height of of Spigot Joint
A2
17
mm
Flange width
A1
36
mm
Flange width
A
48
mm
Base width
A4
74
mm
Width including end cover
B,B1,B2
62
mm
Width of inner ring
F
69
mm
Diameter of housing abutment
t
4
mm
Clearance
Mounting information
G
M16
Bolt size
Basic Load Ratings
Cr
52.5
kN
Basic dynamic load rating
C0r
36
kN
Basic static load rating
