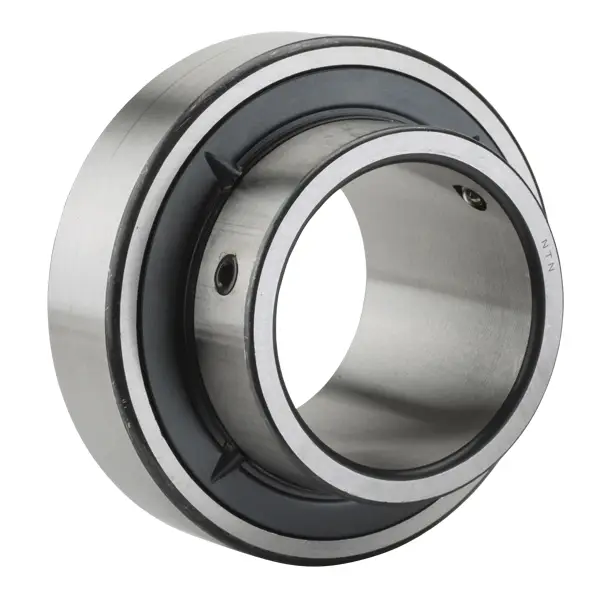

NTN UCS206-103C4
Set Screw Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Limiting Speed - Grease
4900 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision Rating
ISO Class 0
Performance
Standard Duty
Locking Device
2 -120° Set Screw
Lubrication
No
Radial Internal Clearance
C4
Static Load Rating
11300 N
Dynamic Load Rating
19500 N
Enclosure
Double Sealed
Weight
1.700 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
28.575 mm
D
62.000 mm
C
19.000 mm
B
38.100 mm
r
1.000 mm
ds
1/4-28 UNF
G
5 mm
d4
40.8 mm
S1
22.2 mm
S
15.9 mm
Specifications
Radial Dynamic Load Rating
19500 N
Lubrication
No
Radial Static Load Rating
11300 N
