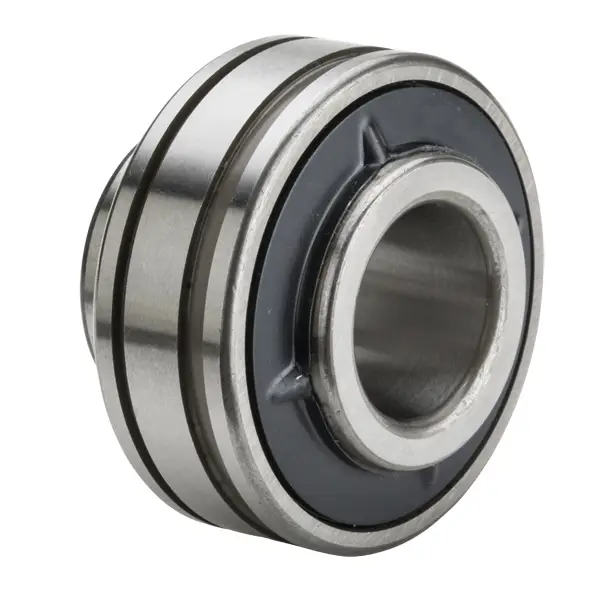

NTN UCS210-115LD1N
Set Screw Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Through Hardened
Limiting Speed - Grease
3100 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision Rating
ISO Class 0
Performance
Standard Duty
Locking Device
2 -120° Set Screw
Lubrication
Outer Ring
Radial Internal Clearance
CN
Static Load Rating
23200 N
Dynamic Load Rating
35000 N
Enclosure
Double Sealed
Weight
3.940 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
49.213 mm
D
90.000 mm
C
24.000 mm
B
51.600 mm
r
1.500 mm
r1
1.500 mm
ds
5/16-24 UNF
G
9 mm
d4
62.4 mm
S1
32.6 mm
S
19 mm
a
3.700 mm
b
2.85 mm
D1
86.790 mm
F
5.600 mm
Specifications
Radial Dynamic Load Rating
35000 N
Lubrication
Outer Ring
Radial Static Load Rating
23200 N
