SKF 11210 TN9

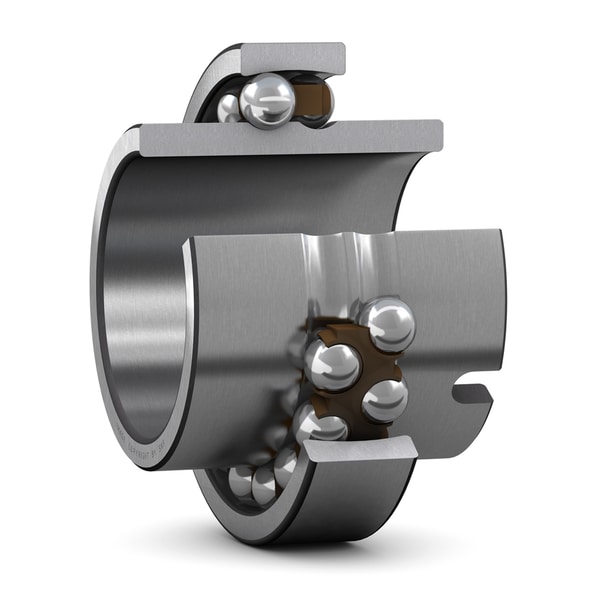

Self-aligning ball bearing with extended inner ring
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
50.0 mm
Bore diameter
D
90.0 mm
Outside diameter
B
58.0 mm
Width
C
20.0 mm
Width outer ring
d1
61.7 mm
Shoulder diameter inner ring
D1
78.1 mm
Shoulder diameter outer ring
r1,2
1.1 mm
Chamfer dimension
mass
0.844 kg
Product net weight
