SKF 1203 ETN9

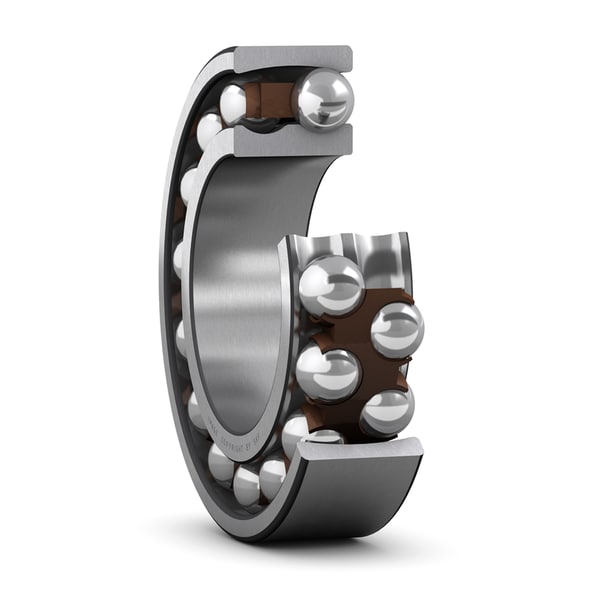

Self-aligning ball bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
17.0 mm
Bore diameter
D
40.0 mm
Outside diameter
B
12.0 mm
Width
d1
24.0 mm
Shoulder diameter inner ring
D1
32.9 mm
Shoulder diameter outer ring
r1,2
0.6 mm
Chamfer dimension
mass
0.067 kg
Product net weight
