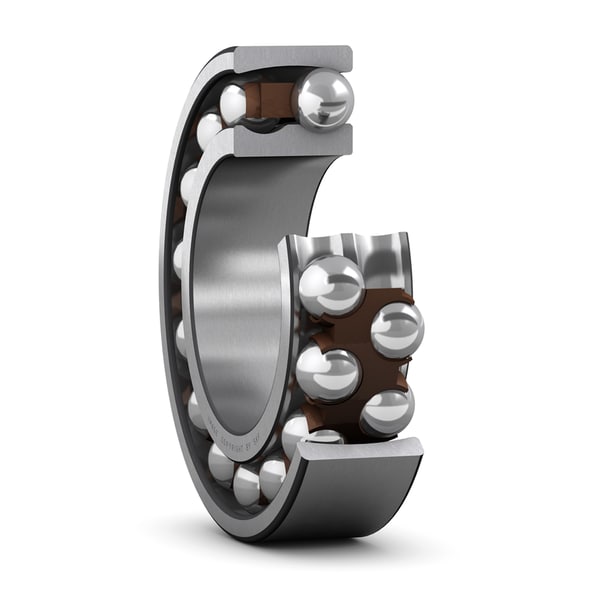

SKF 1204 EKTN9
Self-aligning ball bearing with tapered bore
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
20.0 mm
Bore diameter
D
47.0 mm
Outside diameter
B
14.0 mm
Width
d1
28.88 mm
Shoulder diameter inner ring
D1
40.0 mm
Shoulder diameter outer ring
r1,2
1.0 mm
Chamfer dimension
mass
0.105 kg
Product net weight
