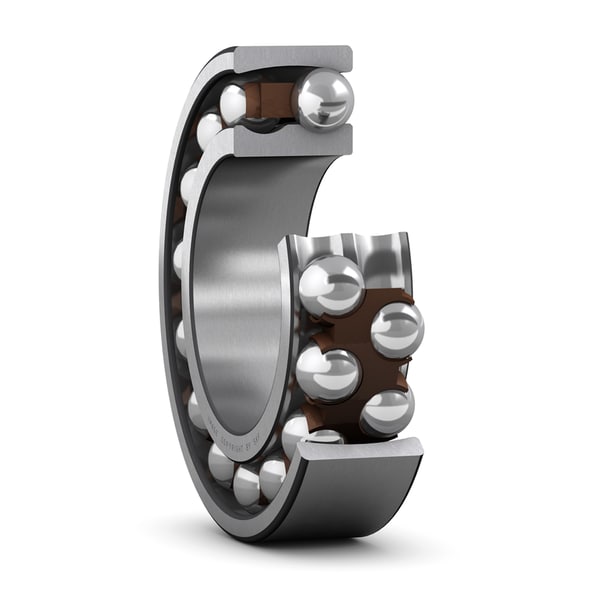

SKF 1209 ETN9
Self-aligning ball bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
45.0 mm
Bore diameter
D
85.0 mm
Outside diameter
B
19.0 mm
Width
d1
57.51 mm
Shoulder diameter inner ring
D1
72.5 mm
Shoulder diameter outer ring
r1,2
1.1 mm
Chamfer dimension
mass
0.452 kg
Product net weight
