SKF 1306 EKTN9

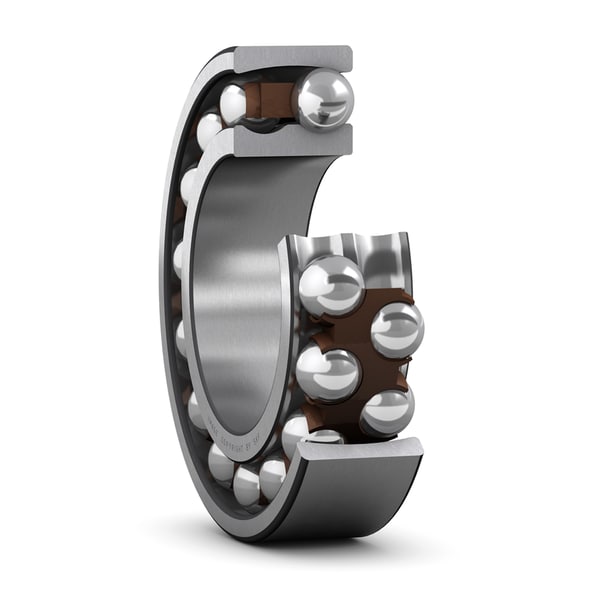

Self-aligning ball bearing with tapered bore
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
30.092 mm
Bore diameter
D
72.0 mm
Outside diameter
B
19.0 mm
Width
d1
45.1 mm
Shoulder diameter inner ring
D1
59.1 mm
Shoulder diameter outer ring
r1,2
1.1 mm
Chamfer dimension
mass
0.379 kg
Product net weight
