SKF 1309 EKTN9

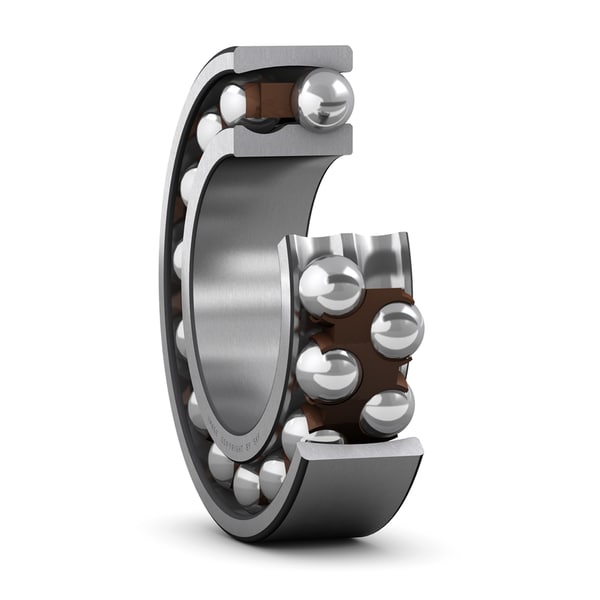

Self-aligning ball bearing with tapered bore
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
45.0 mm
Bore diameter
D
100.0 mm
Outside diameter
B
25.0 mm
Width
d1
67.71 mm
Shoulder diameter inner ring
D1
87.8 mm
Shoulder diameter outer ring
r1,2
1.5 mm
Chamfer dimension
mass
0.899 kg
Product net weight
