SKF 1317

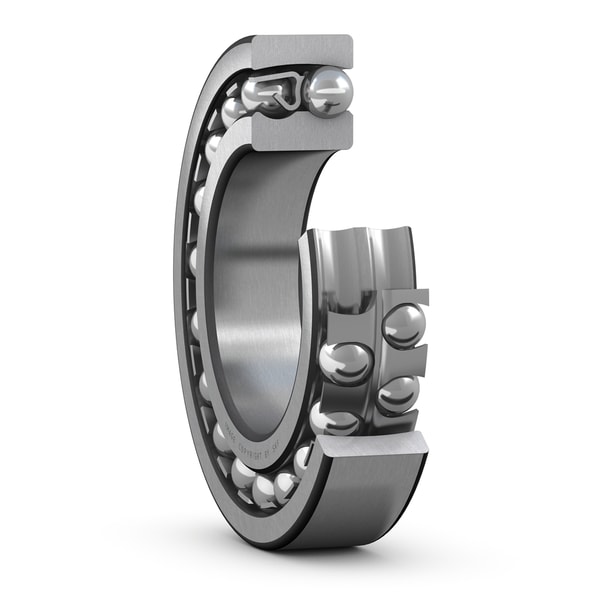

Self-aligning ball bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
85.0 mm
Bore diameter
D
180.0 mm
Outside diameter
B
41.0 mm
Width
d1
117.6 mm
Shoulder diameter inner ring
D1
152.8 mm
Shoulder diameter outer ring
r1,2
3.0 mm
Chamfer dimension
mass
4.95 kg
Product net weight
