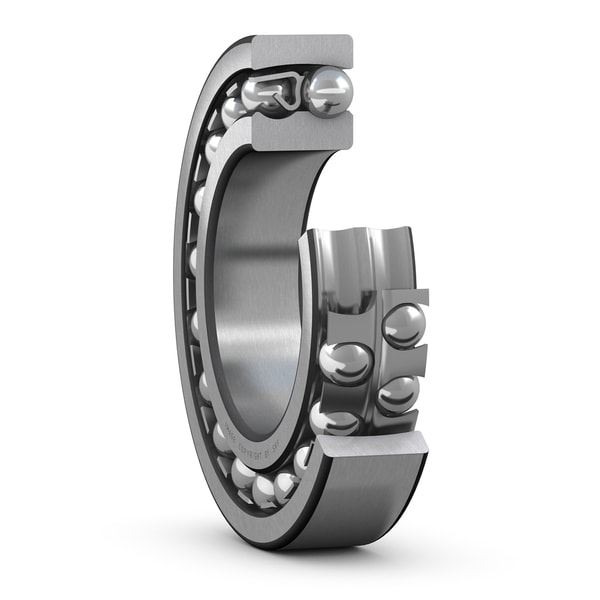

SKF 1319 K
Self-aligning ball bearing with tapered bore
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
95.0 mm
Bore diameter
D
200.0 mm
Outside diameter
B
45.0 mm
Width
d1
127.6 mm
Shoulder diameter inner ring
D1
170.5 mm
Shoulder diameter outer ring
C1
1.486 mm
Protrusion of the balls from bearing side faces
r1,2
3.0 mm
Chamfer dimension
mass
6.6 kg
Product net weight
