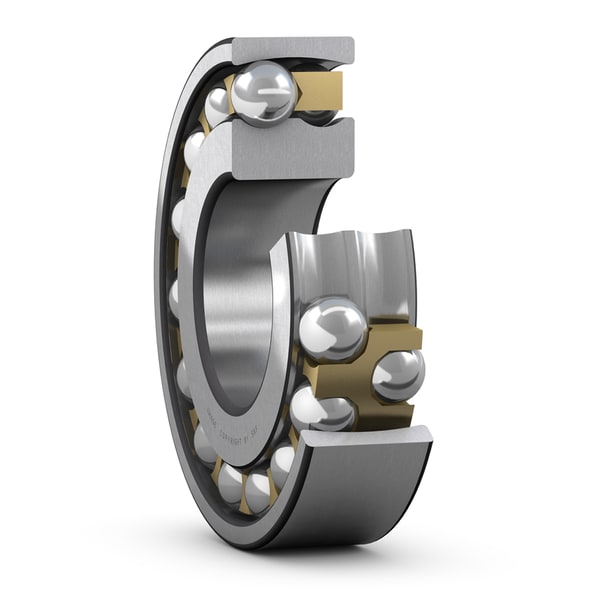

SKF 1320 KM
Self-aligning ball bearing with tapered bore
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
100.0 mm
Bore diameter
D
215.0 mm
Outside diameter
B
47.0 mm
Width
d1
136.0 mm
Shoulder diameter inner ring
D1
181.9 mm
Shoulder diameter outer ring
C1
2.469 mm
Protrusion of the balls from bearing side faces
r1,2
3.0 mm
Chamfer dimension
mass
8.55 kg
Product net weight
