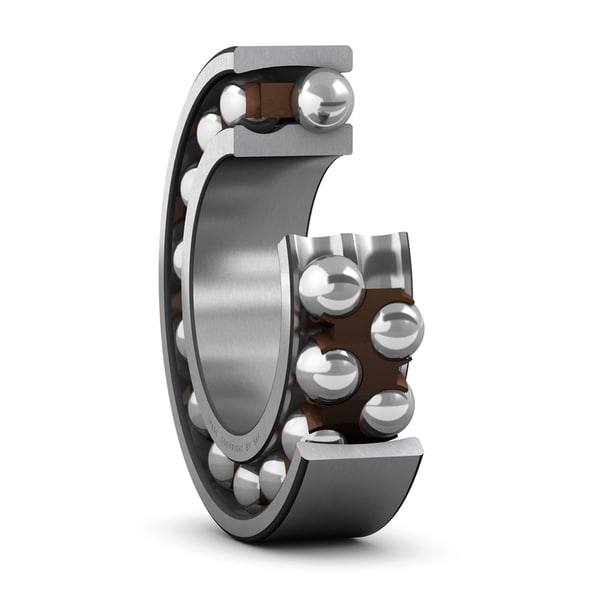

SKF 135 TN9
Self-aligning ball bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
5.0 mm
Bore diameter
D
19.0 mm
Outside diameter
B
6.0 mm
Width
d1
10.3 mm
Shoulder diameter inner ring
D1
15.4 mm
Shoulder diameter outer ring
r1,2
0.3 mm
Chamfer dimension
mass
0.0094 kg
Product net weight
