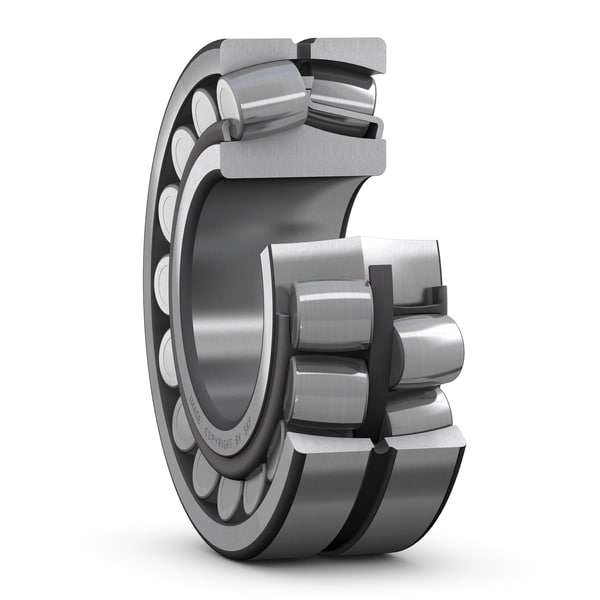

SKF 21316 E
Spherical roller bearing with relubrication features
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
80.0 mm
Bore diameter
D
170.0 mm
Outside diameter
B
39.0 mm
Width
d2
106.0 mm
Shoulder diameter of inner ring
D1
141.0 mm
Shoulder/recess diameter of outer ring
b
6.0 mm
Width of lubrication groove
K
3.0 mm
Diameter of lubrication hole
r1,2
2.1 mm
Chamfer dimension
mass
4.53 kg
Product net weight
