SKF 2216 EKTN9

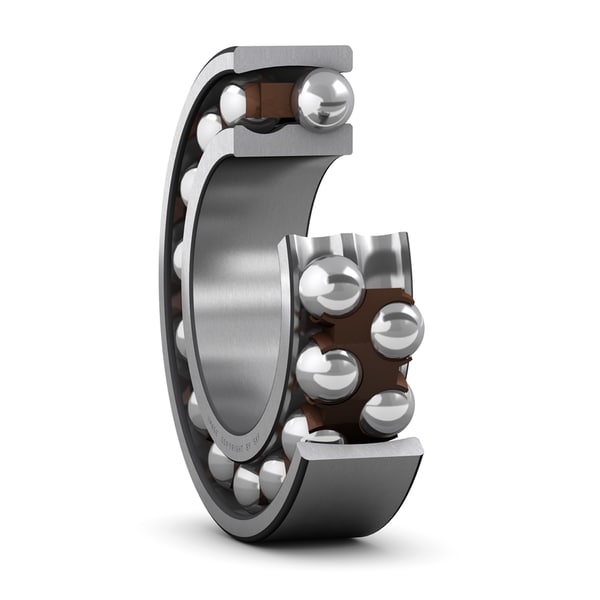

Self-aligning ball bearing with tapered bore
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
80.0 mm
Bore diameter
D
140.0 mm
Outside diameter
B
33.0 mm
Width
d1
99.0 mm
Shoulder diameter inner ring
D1
125.2 mm
Shoulder diameter outer ring
r1,2
2.0 mm
Chamfer dimension
mass
1.91 kg
Product net weight
