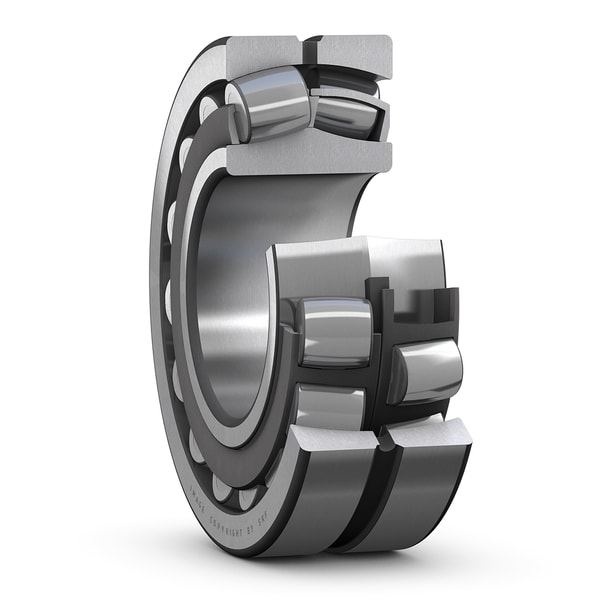

SKF 22207 E
Spherical roller bearing with relubrication features
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
35.0 mm
Bore diameter
D
72.0 mm
Outside diameter
B
23.0 mm
Width
d2
44.5 mm
Shoulder diameter of inner ring
D1
61.8 mm
Shoulder/recess diameter of outer ring
b
3.7 mm
Width of lubrication groove
K
2.0 mm
Diameter of lubrication hole
r1,2
1.1 mm
Chamfer dimension
mass
0.438 kg
Product net weight
