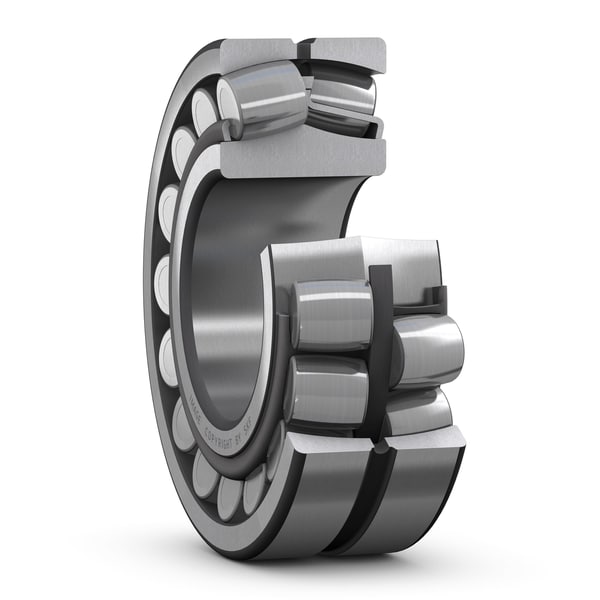

SKF 22217 EK
Spherical roller bearing with tapered bore and relubrication features
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
85.0 mm
Bore diameter
D
150.0 mm
Outside diameter
B
36.0 mm
Width
d2
101.0 mm
Shoulder diameter of inner ring
D1
133.0 mm
Shoulder/recess diameter of outer ring
b
6.0 mm
Width of lubrication groove
K
3.0 mm
Diameter of lubrication hole
r1,2
2.0 mm
Chamfer dimension
mass
2.61 kg
Product net weight
